CU Surge Protection Kit Type 2

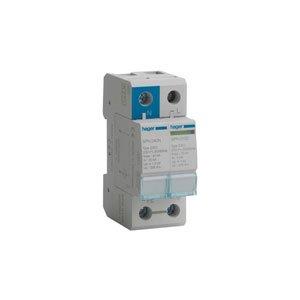

VMES02SPD Surge Protection Kit Type 2 Surge Protection Kit for Hager Consumer Units to aid compliance with 18 th Edition BS 7671.

Surge Protection Kit

Single Module Type 2 Surge Protection Kit for Hager Consumer

Units to aid compliance with 18

th Edition BS 7671.

- Suitable for CT2 connection as per 534.4.3.2 BS7671 18th Edition

- Optical status indication for cartridge replacement

Green = Healthy, Red = Replace

- Replacement cartridge reference : SPL013Z

- Pluggable surge protection module for ease of replacement

- Cartridge can be routinely checked and changed if required without interrupting

supply to loads

- No secondary back-up protection required.

Product Description

A Surge protection kit specifically developed for Hager Consumer units. Developed to ensure optimal

performance of SPD technology within the residential single phase consumer units. SPD is CT2 type to

ensure compatibility with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing

arrangements. This is an IEC Type 2 / class II SPD for single phase power supply networks.

This SPD kit fits within the standard consumer unit with exception of a split load dual RCD board where the

SPD needs to be fitted on the high integrity side of the board. Line connection is provided by the busbar ,

Neutral and Earth connections are via 6mm cable links from the top of the SPD to the earth and neutral
